1. CYLINDER HEAD

Click Here for Microfiche Usage Tip

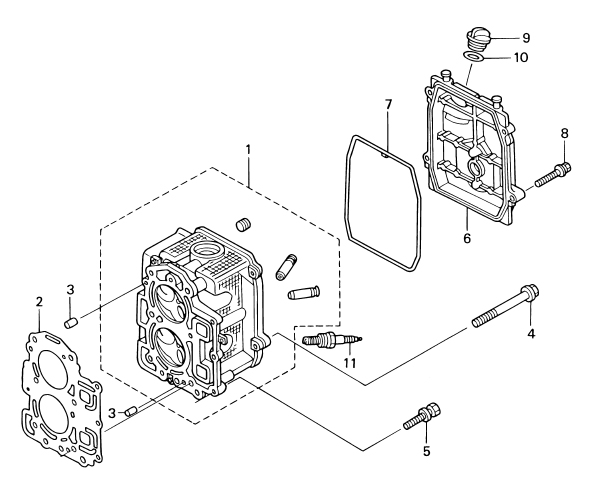

(1) CYLINDER HEAD(2) CYLINDER HEAD GASKET(3) DOWEL PIN,6-12(3) DOWEL PIN,6-12(4) CYLINDER HEAD BOLT(5) BOLT(6) CYLINDER HEAD COVER(7) CYLINDER HEAD COVER GASKET(8) BOLT(9) ENGINE OIL FILLER CAP(10) O-RING, 3.1-24.4(11) SPARK PLUG



Parts List
2006 :: 8 HP :: 4 Stroke Nissan NSF8A3 :: CYLINDER HEAD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER HEAD 3V1B010010 3V1B01001-0 $371.22 1
(2) CYLINDER HEAD GASKET 3V1010050M 3V1-01005-0 $23.05 1
(3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(4) BOLT 8-50 3H8010120M 3H8-01012-0 8-50 $2.49 6
(5) BOLT 9101145625M 910114-5625 $1.04 3
(6) CYLINDER HEAD COVER 3V1B010210 3V1B01021-0 $45.69 1
(7) CYLINDER HEAD COVER GASKET 3V1010240M 3V1-01024-0 $5.58 1
(8) BOLT 9101135625M 910113-5625 $1.47 4
(9) ENGINE OIL FILLER CAP 3R0710150M 3R0-71015-0 $3.31 1
(10) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.30 1
(11) SPARK PLUG 970111103M 9701-1-1103 NGK; DCPR6E $6.50 2
