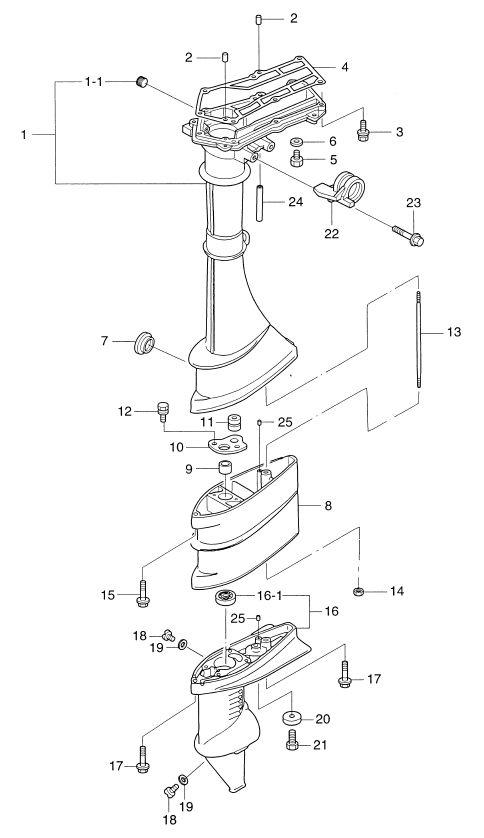

9. DRIVE SHAFT HOUSING - GEAR CASE

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING "S"(1-1) EXHAUST PLUG(2) DOWEL PIN 6-12(2) DOWEL PIN 6-12(3) BOLT(4) DRIVE SHAFT HOUSING GASKET(5) WATER PLUG(6) GASKET, 8.1-15-1(7) GROMMET 29-3(8) EXTENSION HOUSING "L"(9) DRIVE SHAFT BUSHING(10) DRIVE SHAFT BUSHING STOPPER(11) GROMMET 13-2(12) BOLT(13) STUD BOLT 6-171(14) NUT(15) BOLT 6-30 PRECOATED(16) GEAR CASE(16-1) BALL BEARING 6000(17) BOLT 6-30 PRECOATED(17) BOLT 6-30 PRECOATED(18) OIL PLUG(18) OIL PLUG(19) GASKET, 8.1-15-1(19) GASKET, 8.1-15-1(20) ANODE(21) BOLT(22) STEERING BRACKET(23) BOLT(24) RUBBER HOSE(25) DOWEL PIN 6-12(25) DOWEL PIN 6-12



Parts List
2006 :: 3.5 HP :: 4 Stroke Tohatsu MFS3.5A :: DRIVE SHAFT HOUSING - GEAR CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 3ABQ610200 3ABQ61020-0 $272.58 1
(1-1) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(2) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(3) BOLT 9101135630M 910113-5630 $1.15 7 Sold Out View More Details
(4) DRIVE SHAFT HOUSING GASKET 3AB610120M 3AB-61012-0 $8.63 1
(5) WATER PLUG 9106130808M 910613-0808 $2.12 1
(6) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 1
(7) GROMMET 29-3 369610160M 369-61016-0 $3.27 1
(8) EXTENSION HOUSING L 3ABQ611000 3ABQ61100-0 FOR TRANSOM L $119.60 1
(9) DRIVE SHAFT BUSHING 3AB600030M 3AB-60003-0 FOR TRANSOM L $53.53 1
(10) DRIVE SHAFT BUSHING STOPPER 3AB643320M 3AB-64332-0 FOR TRANSOM L $5.29 1
(11) GROMMET 13.2 172360080M 172-36008-0 FOR TRANSOM L $2.40 1
(12) BOLT 9101135612M 910113-5612 FOR TRANSOM L $1.07 2
(13) STUD BOLT 6-171 3F0611011M 3F0-61101-1 FOR TRANSOM L $14.95 1
(14) NUT 9301130600M 930113-0600 FOR TRANSOM L $0.84 1
(15) BOLT 6-30 PRECOATED 3AB600010M 3AB-60001-0 FOR TRANSOM L $3.05 1 Sold Out View More Details
(16) GEAR CASE 3BMQ600000 3BMQ60000-0 $129.58 1
(16-1) BALL BEARING 6000 3AB602130M 3AB-60213-0 $11.19 1
(17) BOLT 6-30 PRECOATED 3AB600010M 3AB-60001-0 $3.05 2 Sold Out View More Details
(18) WATER PLUG 332600052M 332-60005-2 $5.07 2
(19) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(20) ANODE 338602182M 338-60218-2 $9.20 1
(21) BOLT 9101030616M 910113-0616 $0.98 1
(22) STEERING BRACKET 3ABQ620010 3ABQ62001-0 $51.53 1
(23) BOLT 9101135835M 910113-5835 $3.28 2
(24) RUBBER HOSE 98AB30050M 98AB-3-0050 $10.72 1
(25) DOWEL PIN 6-12 3AB011110M 3AB-01111-0 $2.58 2 Sold Out View More Details
