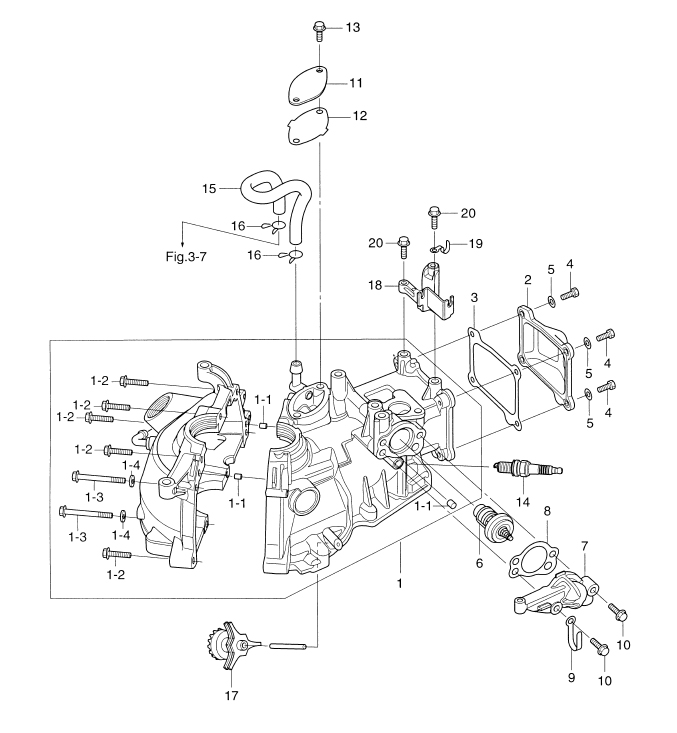

1. CYLINDER & CYLINDER HEAD

Click Here for Microfiche Usage Tip
(1) CYLINDER-CRANKCASE(1-1) DOWEL PIN, 6-12(1-1) DOWEL PIN, 6-12(1-1) DOWEL PIN, 6-12(1-2) BOLT(1-2) BOLT(1-2) BOLT(1-2) BOLT(1-2) BOLT(1-3) BOLT(1-3) BOLT(1-4) WASHER(1-4) WASHER(2) CYLINDER HEAD COVER(3) CYLINDER HEAD COVER GASKET(4) BOLT(4) BOLT(4) BOLT(5) WASHER, 6-16-1.5(5) WASHER, 6-16-1.5(5) WASHER, 6-16-1.5(6) THERMOSTAT(7) THERMOSTAT CAP(8) THERMOSTAT CAP GASKET(9) CLAMP, 6.5-67P(10) BOLT(10) BOLT(11) BREATHER CHAMBER COVER(12) BREATHER CHAMBER COVER GASKET(13) BOLT(14) SPARK PLUG(15) BREATHER HOSE(16) CLIP O12(16) CLIP O12(17) SLINGER(18) THROTTLE CABLE BRACKET(19) CLAMP, 6.5-67P(20) BOLT(20) BOLT



Parts List
2006 :: 3.5 HP :: 4 Stroke Nissan NSF3.5A :: CYLINDER & CYLINDER HEAD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER-CRANKCASE 3ABB011000 3ABB01100-0 WITH NIPPLE $0.00 1 Sold Out View More Details
(1-1) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 3
(1-2) BOLT 9101145635M 910114-5635 $1.96 6 Sold Out View More Details
(1-3) BOLT 9161190675M 916119-0675 $0.00 2 Sold Out View More Details
(1-4) WASHER 9401130600M 940113-0600 $0.83 2
(2) CYLINDER HEAD COVER 3ABB010210 3ABB01021-0 $33.81 1
(3) HEAD COVER GASKET 3AB010240M 3AB-01024-0 $5.58 1
(4) BOLT 9101210616M 910121-0616 OR 910113-0616 $0.98 4
(5) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 4 Sold Out View More Details
(6) THERMOSTAT 3H6010300M 3H6-01030-0 MARK 5B $32.67 1
(7) THERMOSTAT CAP 3ABB010310 3ABB01031-0 $36.78 1
(8) THERMOSTAT CAP GASKET 3AB010320M 3AB-01032-0 $2.31 1
(9) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(10) BOLT 9101135630M 910113-5630 $1.15 2 Sold Out View More Details
(11) BREATHER CHAMBER COVER 3AB074310M 3AB-07431-0 $2.74 1 Sold Out View More Details
(12) BREATHER CHAMBER COVER GASKET 3AB074320M 3AB-07432-0 $2.16 1
(13) BOLT 9101135616M 910113-5616 $1.15 2
(14) SPARK PLUG 970111103M 9701-1-1103 NGK : DCPR6E $6.50 1
(15) BREATHER HOSE 3AB074350M 3AB-07435-0 $8.12 1
(16) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(17) SLINGER 3AB076400M 3AB-07640-0 $3.27 1
(18) THROTTLE CABLE BRACKET 3AB635080M 3AB-63508-0 $18.23 1
(19) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(20) BOLT 9101135625M 910113-5625 $1.47 2
