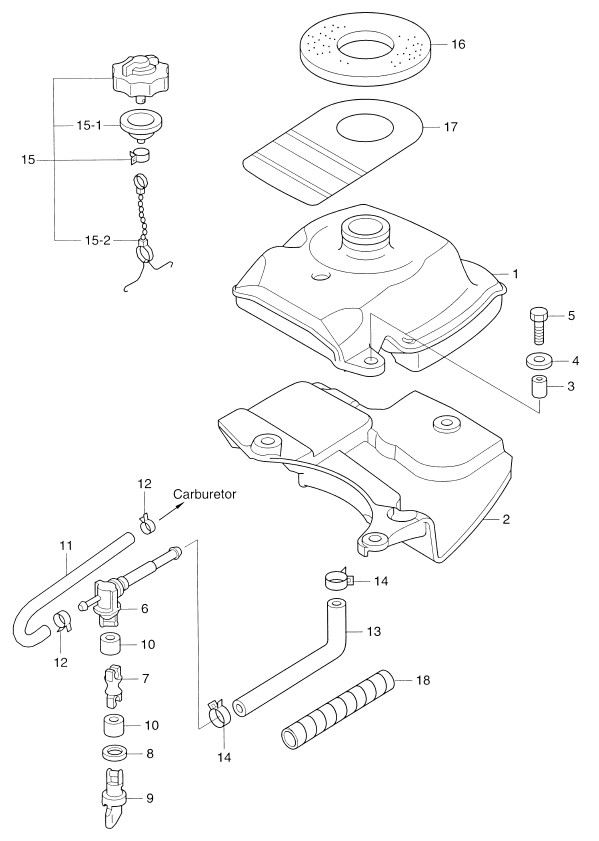

14. INTEGRAL FUEL TANK

Click Here for Microfiche Usage Tip
(1) FUEL TANK(2) FUEL TANK COVER(3) COLLAR 6.2-9-10.7(4) WASHER 6-16-1.5(5) BOLT(6) FUEL COCK(7) FUEL COCK ROD(8) SEAL RING(9) FUEL COCK KNOB(10) FUEL COCK ROD HOSE(10) FUEL COCK ROD HOSE(11) FUEL HOSE(12) CLIP o 9.5(12) CLIP o 9.5(13) FUEL HOSE(14) CLIP 15(14) CLIP 15(15) FUEL TANK CAP(15-1) TANK CAP GASKET(15-2) TANK CAP HOOK(16) FUEL TANK SEAL(17) CAUTION TAG "B"(18) SPIRAL TUBE (O 10-100)



Parts List
2006 :: 2.5 HP :: 4 Stroke Nissan NSF2.5A :: INTEGRAL FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK 3AB703100M 3AB-70310-0 $72.85 1
(2) FUEL TANK COVER 3AB068460M 3AB-06846-0 $22.03 1
(3) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.87 3
(4) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.70 3
(5) BOLT 9101130625M 910113-0625 $1.01 3
(6) FUEL COCK 369703110M 369-70311-0 $31.97 1
(7) FUEL COCK ROD 3AB700610M 3AB-70061-0 $0.00 1 Sold Out View More Details
(8) SEAL RING 369700630M 369-70063-0 $2.74 1
(9) FUEL COCK KNOB 369700620M 369-70062-0 $5.43 1
(10) FUEL COCK ROD HOSE 353725440M 353-72544-0 $3.18 2
(11) FUEL HOSE 3AB703260M 3AB-70326-0 $5.82 1
(12) CLIP ø 9.5 121351430M 121-35143-0 $1.39 2
(13) FUEL HOSE 3AB703250M 3AB-70325-0 $10.50 1
(14) CLIP 15 3AB022150M 3AB-02215-0 $2.90 2
(15) FUEL TANK CAP 3R6703200M 3R6-70320-0 $15.46 1
(15-1) TANK CAP GASKET 309700213M 309-70021-3 $3.91 1
(15-2) TANK CAP HOOK 3C8710170M 3C8-71017-0 $10.82 1
(16) FUEL TANK SEAL 3AB700360M 3AB-70036-0 $8.61 1
(17) CAUTION TAG B 3AB721830M 3AB-72183-0 $4.69 1
(18) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 $6.63 1
