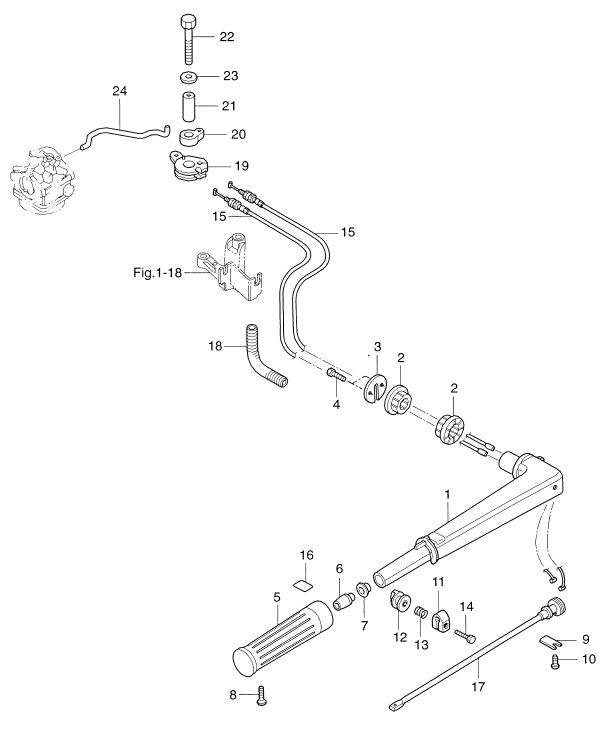

7. TILLER HANDLE & THROTTLE

Click Here for Microfiche Usage Tip
(1) TILLER HANDLE(2) TILLER HANDLE BUSHING(2) TILLER HANDLE BUSHING(3) COVER(4) BOLT(5) GRIP(6) THROTTLE SHAFT DAMPER(7) BUSHING 14-15.8-7(8) SCREW(9) THROTTLE SHAFT SUPPORTER(10) SCREW(11) FRICTION PIECE(12) ADJUSTING NUT(13) SPRING(14) BOLT(15) THROTTLE CABLE(15) THROTTLE CABLE(16) THROTTLE DECAL(17) THROTTLE SHAFT(18) THROTTLE CABLE PROTECTOR(19) THROTTLE DRUM(20) THROTTLE OPENER(21) COLLAR 6.5-10.5-22.6(22) BOLT(23) WASHER 6-16-1.5(24) THROTTLE ROD



Parts List
2006 :: 2.5 HP :: 4 Stroke Nissan NSF2.5A :: TILLER HANDLE & THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE 3V1Q630110 3V1Q63011-0 $49.18 1
(2) TILLER HANDLE BUSHING 369631020M 369-63102-0 $5.07 2
(3) COVER 3V1631070M 3V1-63107-0 $3.57 1
(4) BOLT 9101130616M 910113-0616 $0.98 2
(5) GRIP 3R3630120M 3R3-63012-0 $16.97 1
(6) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 $1.85 1 Sold Out View More Details
(7) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 $1.27 1
(8) SCREW 9208130518M 920813-0518 $1.59 1
(9) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(10) SCREW 9215130612M 921513-0612 OR 921503-0612 $0.93 1
(11) FRICTION PIECE 3V1630350M 3V1-63035-0 $2.58 1
(12) ADJUSTING NUT 3V1630770M 3V1-63077-0 $3.85 1
(13) SPRING 3V1630360M 3V1-63036-0 $1.57 1
(14) BOLT 9101130625M 910113-0625 $0.95 1
(15) THROTTLE CABLE 3V1636000M 3V1-63600-0 $17.26 2
(16) THROTTLE DECAL 3V9720190M 3V9-72019-0 $2.19 1
(17) THROTTLE SHAFT 3V1630410M 3V1-63041-0 $12.14 1
(18) FUEL HOSE PROTECTOR 3H9703130M 3H9-70313-0 $2.31 1
(19) THROTTLE DRUM 3H6636110M 3H6-63611-0 $3.55 1
(20) THROTTLE OPENER 3H6636120M 3H6-63612-0 $1.71 1
(21) COLLAR 6.5-10.5-22.6 3H6636180M 3H6-63618-0 $4.28 1
(22) BOLT 9161130635M 916113-0635 $0.00 1 Sold Out View More Details
(23) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 1 Sold Out View More Details
(24) THROTTLE ROD 3AB636170M 3AB-63617-0 $3.46 1
