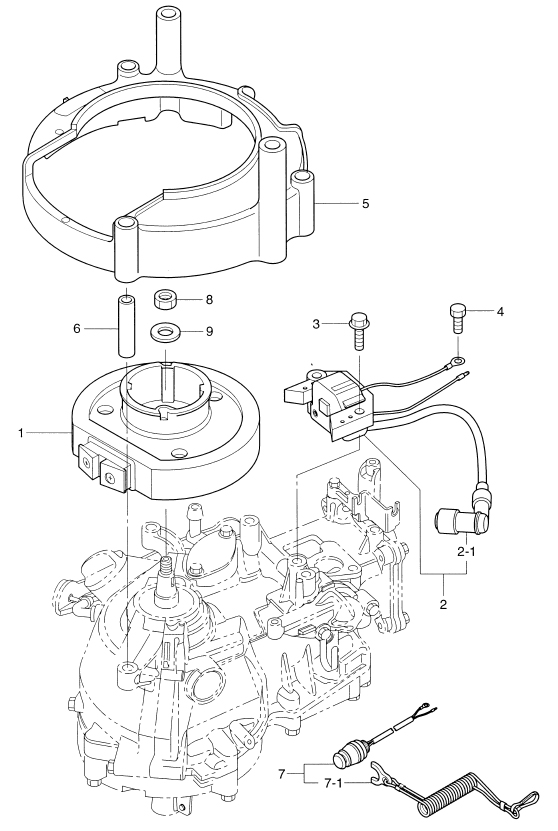

6. MAGNETO

Click Here for Microfiche Usage Tip
(1) FLYWHEEL CUP(2) IGNITER(2-1) PLUG CAP (WITH RESISTANCE)(3) BOLT(4) BOLT(5) FLYWHEEL COVER(6) COLLAR 6.2-9-35(7) STOP SWITCH(7-1) STOP SWITCH LANYARD(8) MAGNETO NUT (10P-1.25)(9) WASHER



Parts List
2006 :: 2.5 HP :: 4 Stroke Nissan NSF2.5A :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP 3AB060010M 3AB-06001-0 $133.95 1
(2) IGNITER 3AB060400M 3AB-06040-0 $153.92 1
(2-1) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 1
(3) BOLT 9101035620M 910103-5620 $1.30 2
(4) BOLT 9101035612M 910103-5612 $1.07 1
(5) FLYWHEEL COVER 3AB063000M 3AB-06300-0 $0.00 1 Sold Out View More Details
(6) COLLAR 6.2-9-35 3AB063030M 3AB-06303-0 $4.38 3 Sold Out View More Details
(7) STOP SWITCH 3D5068700M 3D5-06870-0 $54.43 1
(7-1) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(8) MAGNETO NUT (10P-1.25) 309001320M 309-00132-0 $1.61 1
(9) WASHER 9401211000M 940121-1000 $0.49 1
