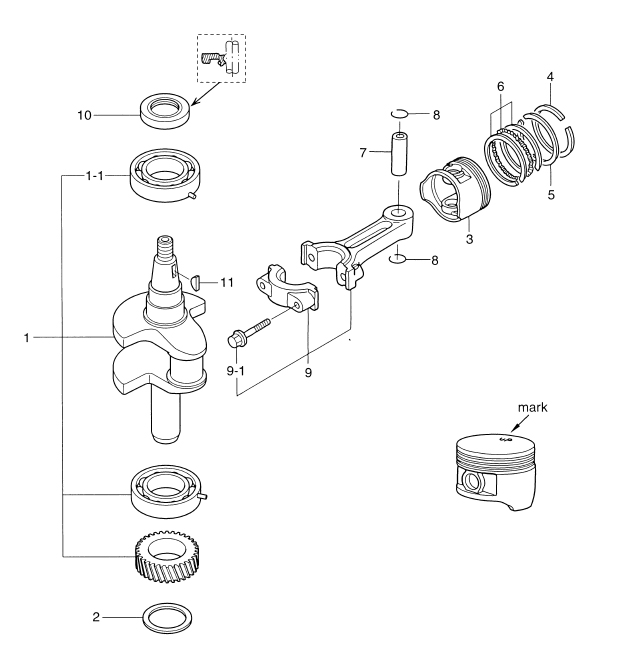

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANKSHAFT ASSY(1-1) BALL BEARING 6204(2) THRUST PLATE 20.2-32-1(3) PISTON(4) PISTON RING TOP(5) PISTON RING 2ND(6) PISTON RING OIL(7) PISTON PIN(8) PISTON PIN CLIP(8) PISTON PIN CLIP(9) CONNECTING ROD ASSY(9-1) CONNECTING ROD BOLT(10) OIL SEAL 20-35-7(11) MAGNETO KEY



Parts List
2006 :: 2.5 HP :: 4 Stroke Nissan NSF2.5A :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3AB000700M 3AB-00070-0 WITH GEAR $220.86 1
(1-1) BALL BEARING 6204 960336204M 9603-3-6204 $15.82 1
(2) THRUST PLATE 20.2-32-1 3AB001150M 3AB-00115-0 $0.00 1 Sold Out View More Details
(3) PISTON 3AB000010M 3AB-00001-0 $27.97 1
(4) PISTON RING TOP 3V1000110M 3V1-00011-0 $7.05 1
(5) PISTON RING 2ND 3V1000120M 3V1-00012-0 $6.30 1
(6) PISTON OIL RING 3V1000130M 3V1-00013-0 $9.41 1
(7) PISTON PIN 332000210M 332-00021-0 $7.34 1
(8) PISTON PIN CLIP 350000241M 350-00024-1 $0.86 2
(9) CONNECTING ROD ASSY 3AB000400M 3AB-00040-0 $38.27 1 Sold Out View More Details
(9-1) CONNECTING ROD BOLT 3AB000590M 3AB-00059-0 $2.94 2
(10) OIL SEAL 20-35-7 3AB001210M 3AB-00121-0 $12.36 1
(11) KEY 309001310M 309-00131-0 $2.31 1
