13. CLAMP BRACKET SWIVEL BRACKET

Click Here for Microfiche Usage Tip

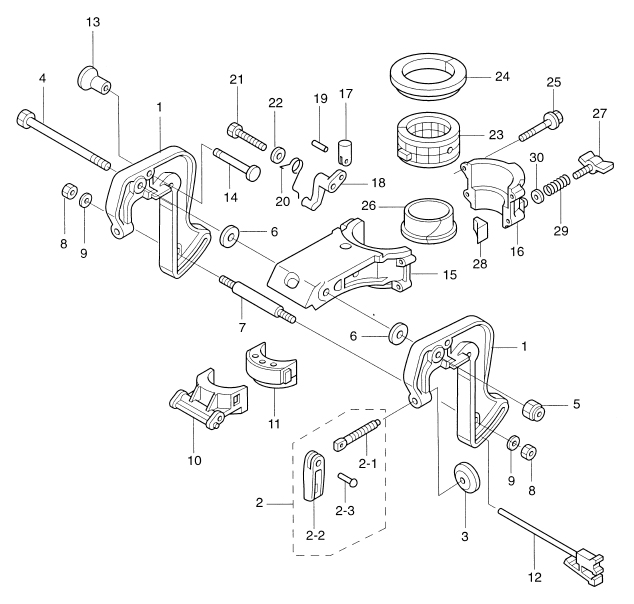

(1) CLAMP BRACKET(1) CLAMP BRACKET(2) CLAMP SCREW ASSY(2-1) CLAMP SCREW(2-2) CLAMP SCREW HANDLE(2-3) RIVET 3-22(3) CLAMP SCREW PAD(4) BOLT 8-122(5) NYLON NUT 8-P1.25(6) WASHER 8.5-28-1(6) WASHER 8.5-28-1(7) DISTANCE PIECE(8) NUT(8) NUT(9) WASHER(9) WASHER(10) THRUST SUPPORTER(11) DAMPER (LOWER)(12) THRUST ROD(13) TILT STOPPER KNOB(14) TILT STOPPER(15) SWIVEL BRACKET "A"(16) SWIVEL BRACKET "B"(17) STOPPER(18) LEVER(19) SPRING PIN 2-12(20) SPRING(21) BOLT(22) WASHER(23) STEERING BUSHING(24) THRUST BUSHING(25) BOLT 6-35 PRECOATED(26) PIVOT BUSHING(27) FRICTION PLATE SCREW(28) FRICTION PLATE(29) FRICTION SPRING(30) WASHER



Parts List
2006 :: 2 HP :: 4 Stroke Tohatsu MFS2A :: CLAMP BRACKET SWIVEL BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET 3ABQ621110 3ABQ62111-0 $41.59 2 Sold Out View More Details
(2) CLAMP SCREW ASSY 3AB621000M 3AB-62100-0 $26.51 2
(2-1) CLAMP SCREW 369621030M 369-62103-0 $22.95 2
(2-2) CLAMP SCREW HANDLE 3AB621020M 3AB-62102-0 $9.29 2
(2-3) RIVET 3C8621041M 3C8-62104-1 $0.92 2
(3) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(4) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(5) NYLON NUT 8-P1.25 9304460800M 930446-0800 OR 930403-0800 $1.99 1 Sold Out View More Details
(6) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(7) DISTANCE PIECE 309621180M 309-62118-0 $7.05 1
(8) NUT 9301130600M 930113-0600 $0.84 2
(9) WASHER 9401130600M 940113-0600 $0.83 2
(10) THRUST SUPPORTER 3AB622120M 3AB-62212-0 $5.25 1
(11) DAMPER (LOWER) 3AB613360M 3AB-61336-0 $23.56 1
(12) THRUST ROD 3F0621600M 3F0-62160-0 $12.08 1
(13) TILT STOPPER KNOB 309624630M 309-62463-0 $4.19 1
(14) TILT STOPPER 309624640M 309-62464-0 $4.83 1
(15) SWIVEL BRACKET A 3ABQ623910 3ABQ62391-0 $55.89 1
(16) SWIVEL BRACKET B 3ABQ623920 3ABQ62392-0 $30.92 1
(17) STOPPER 3AB663340M 3AB-66334-0 $0.00 1 Sold Out View More Details
(18) LEVER 3AB630680M 3AB-63068-0 $2.70 1
(19) SPRING PIN 2-12 9514030212M 951403-0212 $0.70 1
(20) SPRING 3AB663360M 3AB-66336-0 $4.69 1
(21) BOLT 9161130650M 916113-0650 $2.42 1
(22) WASHER 9401130600M 940113-0600 $0.83 1
(23) STEERING BUSHING 393624160M 393-62416-0 $12.66 1
(24) THRUST BUSHING 3H6623250M 3H6-62325-0 $9.92 1
(25) BOLT 6-35 PRECOATED 3V1600010M 3V1-60001-0 $3.43 4
(26) PIVOT BUSHING 309623211M 309-62321-1 $4.38 1
(27) FRICTION PLATE SCREW 309Q624422 309Q62442-2 $8.17 1
(28) FRICTION PLATE 309624412M 309-62441-2 $5.55 1
(29) FRICTION PLATE SPRING 309624461M 309-62446-1 $1.59 1
(30) WASHER 9401130600M 940113-0600 $0.83 1
