Nissan Marine 4 Stroke NSF2.5B1

Nissan Marine 4 Stroke NSF2.5B1

$1,069.36

Tohatsu Nissan Genuine OEM Outboard Motor Part Number Nissan Marine 4 Stroke NSF2.5B1
Sold Out

All parts are sold individually.
The listed price is for one item.
NSF2.5B1
Click on Image to view larger image
Outboard Motor Information
Manufactured by Nissan Marine
Model No. NSF2.5B1
HP 2.5 HP
Shaft Size 15" Short Shaft
MSRP Price $1,162.35
Sales Price $1,069.36
Your Saving $92.99
Shipping Free
Sales Tax1 $0.00
USA Delivery Time2 1-6 Days
Worldwide Delivery Time3 No Shipping4
Availability Out of Stock

1 Florida residents pay Florida Sales Tax
2 When the item leaves the warehouse
3 For Sale in the USA only.
4 We do not ship outboards Worldwide.

Outboard Motor Specifications

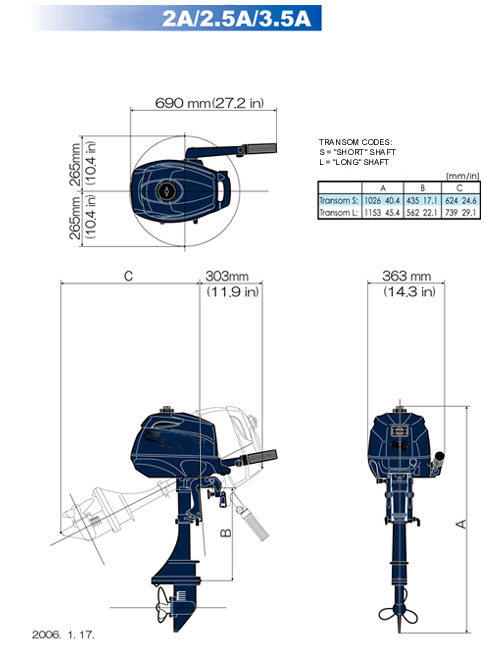

Nissan Marine NSF2.5B1 1 15" Short Shaft View Download
Engine (No. of Cylinder) 1
Output 2.5 hp (1.8 kw)
Displacement 85.5 cc (5.2 cu.in)
Bore x Stroke 55 x 36 mm (2.17 x 1.42 in)
Starting Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral
Gear Ratio 2.15:1
Propeller Selection Range 4.5" - 7"
Transom Height 15"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil**
SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity

10 fl. oz. (300 mL)
Fuel Tank

0.26 US Gal. (1 Lit) Integral Tank
Weight* 41 lbs (18.4 kg)
Alternator Output N/A
Max. RPM Range 4,500 - 5,500
Digital CD Ignition System S
Thermostat Controlled Cooling System S

LEGEND:
S......Standard Features
O......Optional on Certain Models

* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.



Outboard Motor Features

Offset Engine

This Nissan patented powerhead design is tilted 15 degrees to the right inside the lower motor cover to create a compact top cowling design and also help with portability.

Throttle Grip

The twist type throttle control is provided on the steering handle for quick steering as well as one-handed operation to assure your safety.
360° Full Pivot Steering

The outboard can be turned to any direction, up to 360 degrees, for simple steering that is needed for small boats.



Oil Level Sight-Gauge

Conveniently located on the side of the motor, the oil level sight- gauge makes it easy to check the oil level without having to remove the cowling.

Four Point Vibration Absorb System

The specifically designed motor mounting system efficiently absorbs vibration at all rpm ranges.

  • Water cooled and thermostatically controlled cooling system for consistent engine temperature
  • Digital CD ignition system for easier starting, quicker throttle response and smoother trolling
  • Forward-neutral shifting with 360° steering
  • Easy to check oil level gauge indicator located on the engine's side
  • Light and compact
  • Convenient carrying handle
  • Ultra Low emission, EPA 2006 and CARB 3-Star rating approved
  • 5 Year limited warranty
