4. PULLEY & TIMING BELT

Click Here for Microfiche Usage Tip

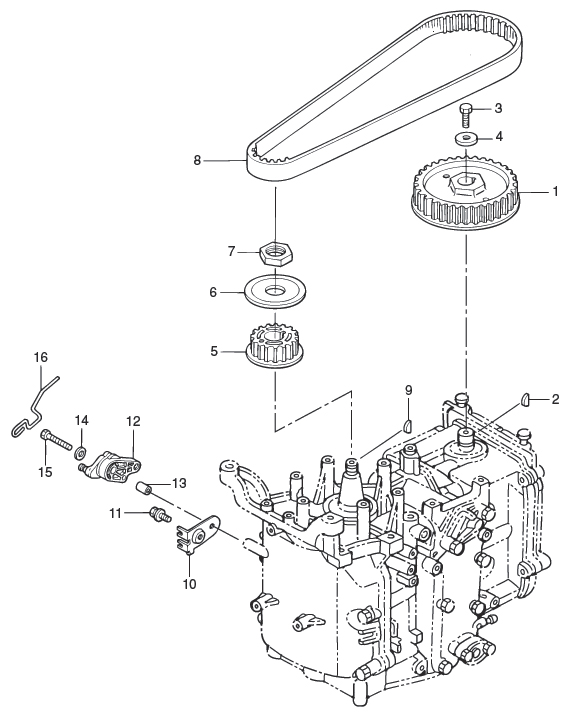

(1) DRIVEN PULLEY(2) KEY(3) BOLT, 6-20 PRE-COATED(4) WASHER, 6.5-19-3.2(5) DRIVE PULLEY(6) BELT GUIDE(7) NUT(8) TIMING BELT(9) KEY(10) THROTTLE CABLE BRACKET(11) BOLT(12) THROTTLE DRUM(13) SPACER, 6.2-9-15.7(14) WASHER, 6.5-16-1.5(15) BOLT(16) THROTTLE ROD



Parts List
2009 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: PULLEY & TIMING BELT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVEN PULLEY 3H8100622M 3H8-10062-2 BLACK / CAMSHAFT PULLEY $48.39 1
(2) KEY 309001310M 309-00131-0 $2.31 1
(3) BOLT 6-20 PRE-COATED 3AA601080M 3AA-60108-0 # 017458XD~ $1.45 1 Sold Out View More Details
(4) WASHER 6.5-19-3.2 3H8100660M 3H8-10066-0 $1.27 1 Sold Out View More Details
(5) DRIVE PULLEY 3V1100600M 3V1-10060-0 TIMING PULLEY $39.16 1
(6) BELT GUIDE 3V1100630M 3V1-10063-0 $3.73 1
(7) NUT 3V1100680M 3V1-10068-0 $4.31 1
(8) TIMING BELT 3V1100450M 3V1-10045-0 $18.70 1
(9) KEY 3T5101310M 3T5-10131-0 $1.56 1
(10) THROTTLE WIRE BRACKET 3V1635081M 3V1-63508-1 OR 3V1-63508-0 $5.93 1
(11) BOLT 9101E35612M 910103-5612 OR 910113-5612 $1.07 1
(12) THROTTLE DRUM 3V1636220M 3V1-63622-0 $4.14 1
(13) SPACER 6.2-9-15.7 346671141M 346-67114-1 OR 346-67114-0 $1.76 1
(14) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(15) BOLT 9101E30630M 910114-5630 OR 910113-0630 $1.21 1
(16) THROTTLE ROD 3V1636171M 3V1-63617-1 # 023322XD~ $6.30 1
